Overrider mounting

Post  Red Riley on Thu Sep 24, 2015 3:57 pm

This may seem a silly question, but how do your overriders attach? Mine have just one bolt going through and pinching against the inside of the bumper. (Oh, I need to sort that rust, ouch!)



But some of the ones I've had restored had bits of a strap attached to one of the bolts when I got them. What's the strap for?
And how does the hole in the face of the bumper come into play? The one bolt can't go through the hole, as it then wouldn't pinch against anything. I must be missing something.

_________________

Click here to see my latest project! . . . . . . . . . . . . . .Click on the banner above to see my photo gallery.
avatar
Red Riley
Admin

Posts : 1172
Points : 4382
Join date : 2008-10-27
Age : 58
Location : Johns Island, SC, USA

View user profile http://smartgraphicmedia.com/

Back to top Go down

Re: Overrider mounting

Post  Jared Mk3 on Thu Sep 24, 2015 8:20 pm

They should mount like that, as well as with a bracket that attaches to the body to keep it in place and even. Well, that's how mine is in any case.

This picture might help a little :

avatar
Jared Mk3

Posts : 624
Points : 2602
Join date : 2012-02-21
Age : 24
Location : Kokstad, South Africa

View user profile

Back to top Go down

Re: Overrider mounting

Post  boris710 on Thu Sep 24, 2015 8:34 pm

Heres whats on mine ...... complete with "strappy" things !

" />

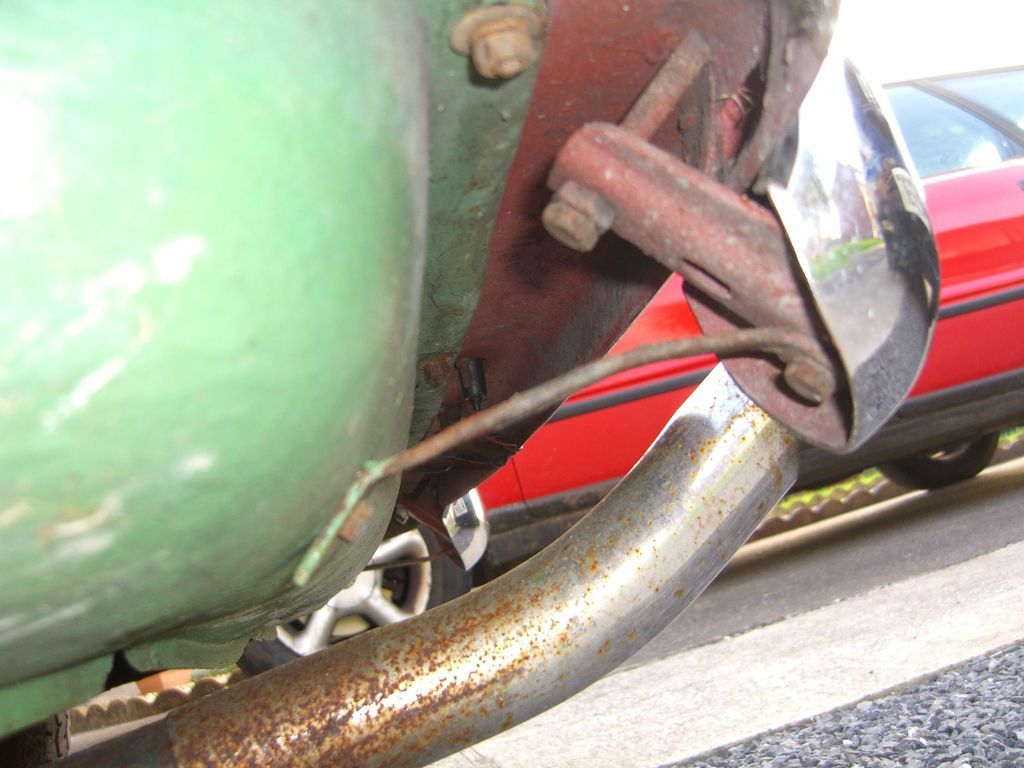

Rear fixing

" />

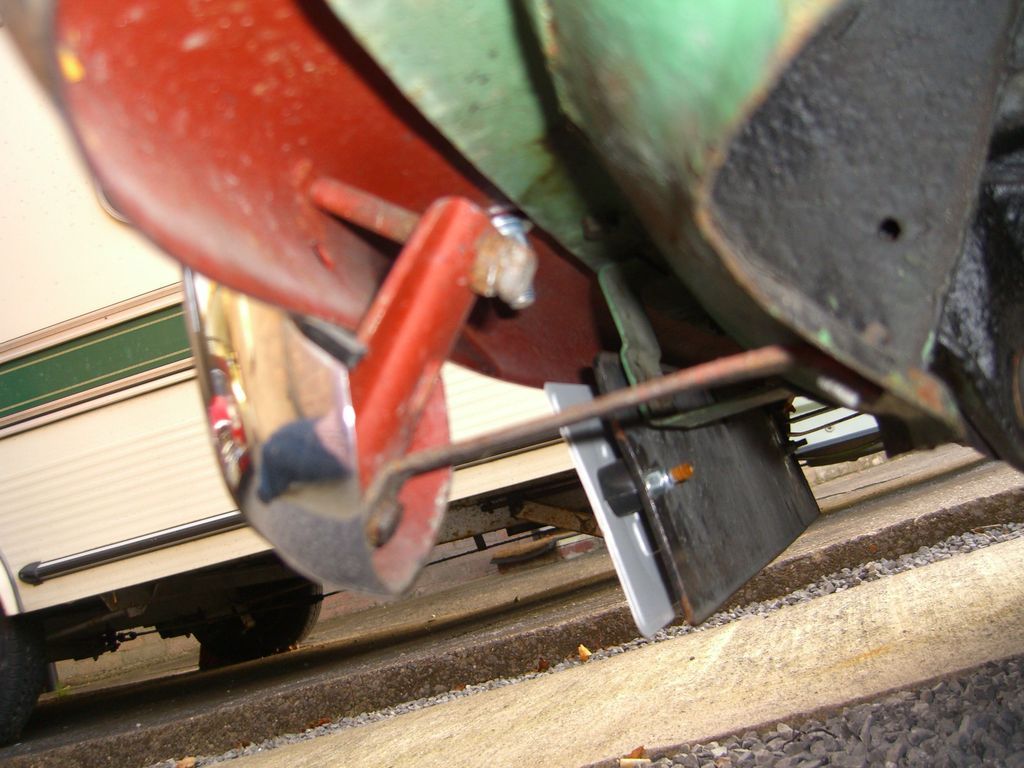

Front fixing

The "straps" are bolted through the front and rear valances and I guess are there to reduce the overider 'bounce' on the bumpers  confused  scratch   A previous owner has very kindly Red Oxide painted the undersides of my bumpers, so no rust !!!  Cool Must clean up that exhaust tailpipe though !! Rolling Eyes

Hope this helps ?
avatar
boris710

Posts : 221
Points : 1074
Join date : 2015-03-18
Location : Llanelli, South Wales

View user profile

Back to top Go down

Re: Overrider mounting

Post  Red Riley on Thu Sep 24, 2015 9:07 pm

Hmmm. I don't have any holes in my rear valance, (and not going to make any) so I might think of another way to attach the brackets, or leave them off. I assume the front bumper mounting is similar? My fronts don't have the straps either.

_________________

Click here to see my latest project! . . . . . . . . . . . . . .Click on the banner above to see my photo gallery.
avatar
Red Riley
Admin

Posts : 1172
Points : 4382
Join date : 2008-10-27
Age : 58
Location : Johns Island, SC, USA

View user profile http://smartgraphicmedia.com/

Back to top Go down

Re: Overrider mounting

Post  boris710 on Thu Sep 24, 2015 9:29 pm

My 2 pics above show rear & front and the 'strap' arrangement is the same.

If you dont want to drill the holes and use the straps I'm sure that'll be OK as the overiders dont weigh all that much in themselves anyway.
avatar
boris710

Posts : 221
Points : 1074
Join date : 2015-03-18
Location : Llanelli, South Wales

View user profile

Back to top Go down

Re: Overrider mounting

Post  Jared Mk3 on Mon Sep 28, 2015 3:36 pm

I'm sure they'll be fine without the straps. If the over riders are on tight enough, I don't see them working loose. Doubt your roads are as bad as a lot of South African roads, so doubt they'll loosen up or shift.
avatar
Jared Mk3

Posts : 624
Points : 2602
Join date : 2012-02-21
Age : 24
Location : Kokstad, South Africa

View user profile
