Biscuits-- the 67 Elf

Post  whitebuffalo on Wed Aug 12, 2009 7:42 pm

I figure I should start a project thread on my car. It's going to be a long project because I plan to drive the car while I restore it. So far I have added Cooper S brakes, new wheel bearings and spacer drums in the back and the addition of Group 2 wide flares and 10x6 Revolutions. Sorry for no pictures on the brake change, dirty hands don't do well with clean digital cameras.
The most recent change is the refinishing of my dash and addition of Magnolia faced gauges. I also painted my dash surround matte black and put a new windscreen in.
Old dash picture

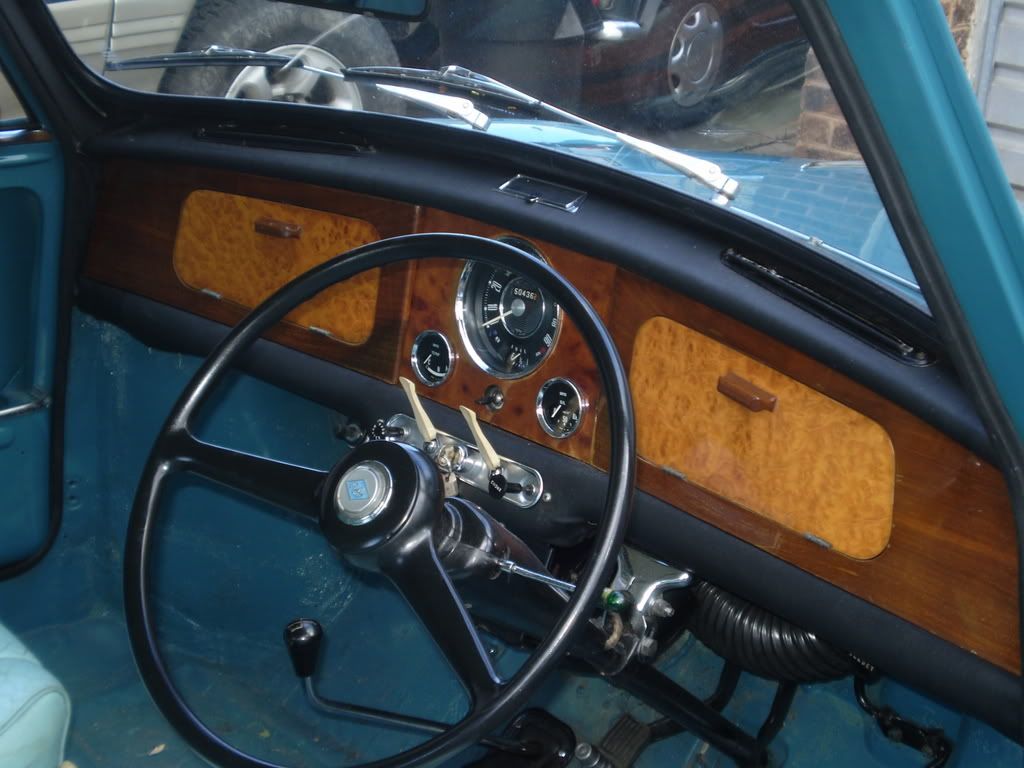

Refinished dash


Repainted dash surround






Here is the car before I added the wheels and flares


And after the flares and wheels



More to come in time.
avatar
whitebuffalo

Posts : 159
Points : 3509
Join date : 2008-10-27
Age : 44
Location : Lancaster, California

View user profile http://www.moala.org

Back to top Go down

Re: Biscuits-- the 67 Elf

Post  Admin on Wed Aug 12, 2009 10:32 pm

BEAUTIFUL!

nothing more to say!

_________________
http://www.pentaxpz.co.uk
avatar
Admin
Admin

Posts : 293
Points : 3631
Join date : 2008-10-25
Age : 33
Location : Penzance, Cornwall

View user profile http://www.elf-hornet-register.co.uk

Back to top Go down

Re: Biscuits-- the 67 Elf

Post  asahartz on Wed Aug 12, 2009 11:14 pm

Actually I think that although the matt black looks OK, black crinkle would look better and be more in keeping - eg it would match the heater. Frosts sell it over here, I'm sure there must be a supplier in the US as well.
avatar
asahartz

Posts : 410
Points : 3614
Join date : 2009-03-03
Age : 56
Location : Mansfield, Notts

View user profile

Back to top Go down

Re: Biscuits-- the 67 Elf

Post  whitebuffalo on Thu Aug 13, 2009 3:29 am

asahartz wrote:Actually I think that although the matt black looks OK, black crinkle would look better and be more in keeping - eg it would match the heater. Frosts sell it over here, I'm sure there must be a supplier in the US as well.
I tried the crinkle finish paint on the bottom rail and it looked ghastly. The manufacturer (PJ1) made the formula inconsistent and out of three cans of it, only one can worked. The one can just dribbled and the other didn't work at all. I finally just sprayed it with the matte finish to get it over with.
I do agree that it would look fantastic with the crinkle finish and I will research a bit to find the one that will work. I don't mind removing it all and trying again. Another thought would be some of the Cooper S type vinyl, but I hear it is a right pain in the @$$ to get it right.
avatar
whitebuffalo

Posts : 159
Points : 3509
Join date : 2008-10-27
Age : 44
Location : Lancaster, California

View user profile http://www.moala.org

Back to top Go down

Re: Biscuits-- the 67 Elf

Post  TONYELF on Thu Aug 13, 2009 11:14 am

My rail was covered with vinyl when I got the car and had to replace it after having a flashback fire! The vinyl has a light crackle effect and was obtained at one of the shows for £5 (Enough to cover both rails)


_________________
Club member no 0199
I'm perfectly sane, the voices said so.
avatar
TONYELF
Admin

Posts : 1742
Points : 5124
Join date : 2008-11-21
Location : Chester UK

View user profile http://www.miniaddicts.co.uk

Back to top Go down

Re: Biscuits-- the 67 Elf

Post  asahartz on Thu Aug 13, 2009 12:09 pm

Vinyl would have been the original finish on a 67 car; mine is like that. The 69 car I had (which ended up in Florida) was also vinyl, but I had to replace that - a scrap from a local upholsterer did the job for me.

Looks as though you're also missing the illuminated end of the indicator stalk? Those parts are still available.
avatar
asahartz

Posts : 410
Points : 3614
Join date : 2009-03-03
Age : 56
Location : Mansfield, Notts

View user profile

Back to top Go down

Re: Biscuits-- the 67 Elf

Post  superworm on Sat Aug 15, 2009 12:57 am

I replaced Elfies dash rails (top/bottom & sides) with ye olde grained vinyl roof type vinyl (as on BLMC 1300GT's, Ford Cortina's, etc.). It was a perfect match for the old stuff that was getting somewhat grubby. If you go this route (recommended for originality) you will need to temporarily pop out the windscreen for doing the top rail and sides as excess is tucked under the rubber seal. With regards to the sides, (between the top & bottom rails) there are narrow (about 1" wide) shaped metal strips that are are covered in the vinyl with the fwd/aft edges trapped under the windscreen rubber and the door surround rubber seals. Their lower edges are under the top rail covering and the upper edges simply overlaps the headlining. Sorry I can't provide a pattern for these strips without removing my screen (someone out there may have them available for a tracing or you can check out someone else's Elf if you go to one of the Classic Car meets...shouldn't be too dificult to replicate them). The whole issue is stuck down with Evostick having given it time to "go off" per instructions - don't be too impatient else it'll come unstuck in the near future.

If your local auto upholsterer can't supply the grained vinyl then make a date for the Classic Car Show or Restoration Show where someone will have some...and its not expensive.....methinks you deserve a vacation in jolly Olde England!!

Methinks matt black paint will look like a pig's ear in a few months time (remember the sirry pirrock who put his feet on his girlfriends Yaris dash!!!). Grained Vinyl will TRANSFORM your interior - go for it....for a car as nice looking as yours nowt else will do!

Cheers
avatar
superworm

Posts : 176
Points : 3422
Join date : 2009-02-14
Location : Fylde, Lancashire

View user profile

Back to top Go down

Re: Biscuits-- the 67 Elf

Post  Red Riley on Sat Aug 15, 2009 4:41 am

superworm wrote: With regards to the sides, (between the top & bottom rails) there are narrow (about 1" wide) shaped metal strips that are are covered in the vinyl with the fwd/aft edges trapped under the windscreen rubber and the door surround rubber seals. Their lower edges are under the top rail covering and the upper edges simply overlaps the headlining. Sorry I can't provide a pattern for these strips without removing my screen (someone out there may have them available for a tracing or you can check out someone else's Elf if you go to one of the Classic Car meets...shouldn't be too dificult to replicate them).

I believe they're called A-Post pillar covers. Newton Commercial have them, as well as the proper dash material. I also bought a nice Elf boot board carpet kit from them, though they don't list it on their website.

_________________

Click here to see my latest project! . . . . . . . . . . . . . .Click on the banner above to see my photo gallery.
avatar
Red Riley
Admin

Posts : 1186
Points : 4568
Join date : 2008-10-27
Age : 58
Location : Johns Island, SC, USA

View user profile http://smartgraphicmedia.com/

Back to top Go down

Re: Biscuits-- the 67 Elf

Post  discoman41 on Sun Aug 16, 2009 4:30 am

asahartz wrote:Vinyl would have been the original finish on a 67 car; mine is like that. The 69 car I had (which ended up in Florida) was also vinyl, but I had to replace that - a scrap from a local upholsterer did the job for me.

Looks as though you're also missing the illuminated end of the indicator stalk? Those parts are still available.

Shouldn't have an illuminated indicator stalk on a mkIII should it?

Jase
avatar
discoman41

Posts : 713
Points : 4096
Join date : 2008-10-30
Age : 50
Location : East London

View user profile

Back to top Go down

Re: Biscuits-- the 67 Elf

Post  Elf Service on Sun Aug 16, 2009 8:51 am

Shouldn't have an illuminated indicator stalk on a mkIII should it?

Jase[/quote]

Early Mk111 Elf and Hornets carried over some of the older Mk11 features including the flashing indicator arm, old style heater, lower dash rail, steering wheel centre boss, standard Mini wheel trims and seat design. I think the later Mk111 was introduced early 68.
avatar
Elf Service

Posts : 223
Points : 3500
Join date : 2008-12-04
Location : Worcestershire

View user profile

Back to top Go down

Re: Biscuits-- the 67 Elf

Post  TONYELF on Sun Aug 16, 2009 11:52 am

It's a typical BMC and BLMC procedure to use whats on the shelf up first before starting on new stock. After all what would you do with surplus old stock?
Unlike Other companys (Vauxhall for example) who happen to be 7 miles from me used to send surplus stock to their sports pavillion and sell it off to their employees who paid pennies to upgrade their Vivas.There were many 5/6 year old Vivas running around with almost uptodate fittings! I myself had a brand new carpet (15/-) A heated rear window (5/-) and a central gear lever console (tray) for 2/6
That was 1969 "Those were the days" LOL cheers

_________________
Club member no 0199
I'm perfectly sane, the voices said so.
avatar
TONYELF
Admin

Posts : 1742
Points : 5124
Join date : 2008-11-21
Location : Chester UK

View user profile http://www.miniaddicts.co.uk

Back to top Go down

Re: Biscuits-- the 67 Elf

Post  asahartz on Sun Aug 16, 2009 12:31 pm

discoman41 wrote:
asahartz wrote:Vinyl would have been the original finish on a 67 car; mine is like that. The 69 car I had (which ended up in Florida) was also vinyl, but I had to replace that - a scrap from a local upholsterer did the job for me.

Looks as though you're also missing the illuminated end of the indicator stalk? Those parts are still available.

Shouldn't have an illuminated indicator stalk on a mkIII should it?

Jase

My 67 Mk III does!
avatar
asahartz

Posts : 410
Points : 3614
Join date : 2009-03-03
Age : 56
Location : Mansfield, Notts

View user profile

Back to top Go down

Mk111 evolution

Post  Elf Service on Sun Aug 16, 2009 5:40 pm

As mentioned earlier, the Mk111 was modified early 1968 with the later indicator stalk with horn and main beam flasher. The floor dip switch was replaced with the later stalk and the gearbox gained synchromesh on 1st gear. My Elf June 67 came with the older Mk11 set-up but I have modernised it with a later Mini single stalk indicator and steering lock assembly to add a little more security.
As Tony mentioned, they used up old stock where possible and carried these over across the range. The boot catch arrangement is very similar to that used on MGB's of the same period and I'm sure there are similar examples with other vehicles.
avatar
Elf Service

Posts : 223
Points : 3500
Join date : 2008-12-04
Location : Worcestershire

View user profile

Back to top Go down

Re: Biscuits-- the 67 Elf

Post  Admin on Mon Aug 17, 2009 12:03 am

My 1969 Elf has floor dip switch and a green light on end of stalk!

the green end is dameaged on my stalk and the minute you try to operate the dip switch on floor it blows a fuse and all electrics go!

_________________
http://www.pentaxpz.co.uk
avatar
Admin
Admin

Posts : 293
Points : 3631
Join date : 2008-10-25
Age : 33
Location : Penzance, Cornwall

View user profile http://www.elf-hornet-register.co.uk

Back to top Go down

Re: Biscuits-- the 67 Elf

Post  discoman41 on Mon Aug 17, 2009 1:44 am

Elf Service wrote:Shouldn't have an illuminated indicator stalk on a mkIII should it?

Jase

Early Mk111 Elf and Hornets carried over some of the older Mk11 features including the flashing indicator arm, old style heater, lower dash rail, steering wheel centre boss, standard Mini wheel trims and seat design. I think the later Mk111 was introduced early 68.[/quote]

Thanks Andrew! Your knowledge never ceases to amaze me! And, like a man in orthopaedic shoes..... I always stand to be corrected! Laughing

I guess "Rupe" is deemed to be late Mk3 then although his build date was Feb 68.

I guess that would explain why my friend has a mark 2 with some Mark 1 bits, because of the new/old stock thing.

Jase


Last edited by discoman41 on Wed Aug 19, 2009 2:40 am; edited 1 time in total (Reason for editing : typo)
avatar
discoman41

Posts : 713
Points : 4096
Join date : 2008-10-30
Age : 50
Location : East London

View user profile

Back to top Go down

Re: Biscuits-- the 67 Elf

Post  whitebuffalo on Tue Aug 18, 2009 6:08 am

I found that a local shop has some crinkle vinyl so I will add that to the dash and A pillars. The matte paint is already upsetting me because it is showing my swipe marks from cleaning. I hate having to remove the screen , but maybe I will wait until I paint the car later this year.

As for the turn signal stock, it is missing the green E.T. finger. I plan on getting the replacement unit sometime in the future, but the rest of the interior is first.
The car is an early MkIII from New Zealand and has late MkII aspects. The motor is even listed as a MkII engine, and is the original. The high beam dip is floor mounted, instrument panel light switch on the dash, E.T. finger. I'd have to say that there was no covering on the dash rails from new since it has the original paint on there and no glue residue.
avatar
whitebuffalo

Posts : 159
Points : 3509
Join date : 2008-10-27
Age : 44
Location : Lancaster, California

View user profile http://www.moala.org

Back to top Go down

Re: Biscuits-- the 67 Elf

Post  Big_Al_Smith on Tue Aug 18, 2009 4:42 pm

Rusty is the same - a 1968 mkIII but with floor dip switch and "et finger" indicator stalk. i do like that description! Laughing
avatar
Big_Al_Smith

Posts : 1219
Points : 4541
Join date : 2008-11-02
Age : 51
Location : Chislehurst -

View user profile http://s279.photobucket.com/albums/kk127/bigalsmith_photos/

Back to top Go down

Biscuits is now an Elf GT

Post  whitebuffalo on Mon Oct 19, 2009 8:55 pm

I had to upgrade the motor on little Biscuits. The 998 kept popping out of fourth gear and being low on funds at the moment (My brother is getting married and I'm chipping in) I had to manipulate my engines to get what I wanted for the Elf.
I have a '65 Morris Cooper that had the 998 taken out of it at some point in history and a 1275 put in it's place.

I took the engine lump out


This motor has a rebuilt HIF6 and a new Aldon Yellow dizzy with new wires and coil.
The 998 from the Riley

The Riley motor will be rebuilt with 9:1 or 10:1 compression and a SW5 cam with a Cooper head, if I can source one. The trans will be rebuilt with a close ratio straight cut set up and will go into my Cooper and will be fed with a DCOE 40 carb and proper intake along with a freeflow type exhaust.

The Motor was cleaned up a bit

and readied for it's new home

I will eventually remove the motor and rebuild it with MED internals and an MED rod change transmission, but for now it will work just fine. Once I decide on a final colour scheme for the car I can paint the engine bay.
It took me a good part of a weekend to get both motors out of their respective cars and switched over. Here is the finished engine swap



I used the exhaust that I had when the engine was in the Cooper; LCB with RC40 center exit and will cut and lengthen the tail pipe later this week.

The tip just hits the rear valance and causes some fumes to get back into the car through the rusted hole in my boot floor and the vibration is annoying, but will be remedied.
So far i really like the added power and really like not having to hold the gear shift in fourth! cyclops


Last edited by whitebuffalo on Tue May 31, 2011 12:25 am; edited 1 time in total
avatar
whitebuffalo

Posts : 159
Points : 3509
Join date : 2008-10-27
Age : 44
Location : Lancaster, California

View user profile http://www.moala.org

Back to top Go down

Re: Biscuits-- the 67 Elf

Post  hornetob on Fri Oct 23, 2009 11:34 pm

I love those magnolia dials! I think those original wheels really suit the elf, but then its all about personal preferance isn't it!

Just noticed you have a porsche 912, would love to see some pics as I love the look of those cars.
avatar
hornetob

Posts : 47
Points : 3386
Join date : 2008-10-26
Location : Lyme Regis, Dorset

View user profile

Back to top Go down

Re: Biscuits-- the 67 Elf

Post  whitebuffalo on Mon Oct 26, 2009 3:16 am

hornetob wrote:I love those magnolia dials! I think those original wheels really suit the elf, but then its all about personal preferance isn't it!

Just noticed you have a Porsche 912, would love to see some pics as I love the look of those cars.
I like the 5x10 Cosmics too, but I do like the aggressive 6x10 Revolutions too. The 6x10's do seem to make the handling a bit twitchy, the 5x10's handle most all roads just fine and seem quieter too. I have thought about keeping the Cosmics on both my Mini and the Riley. I have two sets and having them both match seems kind of cool.
Here is my '66 Porsche 912
http://s454.photobucket.com/albums/qq266/whitebuffaloracing/1966%20Porsche%20912/
I like the four cylinder better than the flat 6 since the four is lighter and the car has less of a pendulum effect. I plan on a Jake Raby type 4 motor in it in the future. He can make the motor put out 145 to 175hp reliably so I can have flat 6 power with flat four light weight and they are cheaper too!
avatar
whitebuffalo

Posts : 159
Points : 3509
Join date : 2008-10-27
Age : 44
Location : Lancaster, California

View user profile http://www.moala.org

Back to top Go down

912

Post  hornetob on Mon Oct 26, 2009 1:23 pm

I know what you mean about the cosmics, it would be good to have them on both cars for a bit of fun!

That 912 is lovely, I just think that the lines are beautiful and the chrome really suits it.

I have been looking for one for a while over here but they seem to go for almost 911 money now which is a shame. Are there many left in the U.S.? If it was cost effective I would consider importing one, at least the body would be a bit less likely to be rotted!

How long have you had yours?
avatar
hornetob

Posts : 47
Points : 3386
Join date : 2008-10-26
Location : Lyme Regis, Dorset

View user profile

Back to top Go down

Re: Biscuits-- the 67 Elf

Post  Zef on Tue Oct 27, 2009 1:10 am

Yokohama A032r tyres on 6x10's are the dogs danglies and grip like you wouldn't believe. I have them on my 6x10 revolutions and it seems ok to me. More nimble than my girlfriends Mini with 5x12's and falken tyres.
avatar
Zef

Posts : 140
Points : 3275
Join date : 2009-06-25
Age : 47
Location : Yorkshire

View user profile

Back to top Go down

Re: Biscuits-- the 67 Elf

Post  whitebuffalo on Tue Oct 27, 2009 6:06 am

hornetob wrote:I know what you mean about the cosmics, it would be good to have them on both cars for a bit of fun!

That 912 is lovely, I just think that the lines are beautiful and the chrome really suits it.

I have been looking for one for a while over here but they seem to go for almost 911 money now which is a shame. Are there many left in the U.S.? If it was cost effective I would consider importing one, at least the body would be a bit less likely to be rotted!

How long have you had yours?
I've had the Porsche for 2 years now. There are quite a few around ranging from $4,500 USD to $7,500 USD for ok running cars to $20k plus for really nice ones. They tend to fetch 911 priced now over here too. You could find a good one from here and ship it over. The cost of the shipping would be far less than the cost of the repair on a rusted one. However, I have seen many a rotted 912 in the front truck area and the floors in the driver and passenger area and rot on the rear window areas so even over here in California the tin worm love German food Smile
avatar
whitebuffalo

Posts : 159
Points : 3509
Join date : 2008-10-27
Age : 44
Location : Lancaster, California

View user profile http://www.moala.org

Back to top Go down

Re: Biscuits-- the 67 Elf

Post  whitebuffalo on Tue Oct 27, 2009 6:10 am

Zef wrote:Yokohama A032r tyres on 6x10's are the dogs danglies and grip like you wouldn't believe. I have them on my 6x10 revolutions and it seems ok to me. More nimble than my girlfriends Mini with 5x12's and falken tyres.
Yeah, had the 032's on a Mini I had a few years back and they were fantastic. My only worry is how long they will last. I didn't have the other car long enough to gauge wear. The twitchy handling with the 10x6's could be down to my worn bushes. I changed the tie rod sets this last weekend and it seemed to make a nice improvement.
avatar
whitebuffalo

Posts : 159
Points : 3509
Join date : 2008-10-27
Age : 44
Location : Lancaster, California

View user profile http://www.moala.org

Back to top Go down

Biscuits has a new specification

Post  whitebuffalo on Tue Dec 08, 2009 11:40 pm

Ok, an update for Biscuits. I sold my '65 Cooper to a local rep for Yokohama tires so with the deal I got four new 008's and sold him my Revolutions. The new rubber wouldn't go too well with my shabby Cosmics so I had them powder coated in Sun Gold


As soon as I get the tires installed on the wheels I will post more pics of how they look.
Since I have sold the '65 I had to let the 1275 go to the new owner. I am taking the profits of the sale and applying it to my 998. The new specification of the 998 will be
.20" overbore with flat top pistons
266 Kent cam with 123 dizzy
rebuild the 3 sync trans(might have to get a rod change if the original is too far gone)
12G295 head
New wire harness with alternator.
Here is the Maniflow Cooper freeflow header (JetHot Ceramic coated)

I will have pictures and more information once I get the motor back from the engine builder.
Graham of Heritage Motors here on Southern California is building it up for me and he said that the bearings were black on top and down to copper on the bottom and the thrust bearings were down to copper. The crank end float was visibly noticeable when you grabbed the flywheel. I would guess at least 2mm or more worth of movement. So my little motor was saved before it had a chance to die.


Last edited by whitebuffalo on Tue Dec 15, 2009 6:59 am; edited 2 times in total (Reason for editing : added new picture)
avatar
whitebuffalo

Posts : 159
Points : 3509
Join date : 2008-10-27
Age : 44
Location : Lancaster, California

View user profile http://www.moala.org

Back to top Go down

Re: Biscuits-- the 67 Elf

Post  Sponsored content


Sponsored content


Back to top Go down

Page 1 of 3 1, 2, 3  Next

View previous topic View next topic Back to top

- Similar topics


Permissions in this forum:
You cannot reply to topics in this forum
